>> The Mid-Latitude Jet Stream, Fronts and Air Masses <<





This lecture includes an overview of the various middle and high latitude circulations.  In addition to these topics, air masses and a basic overview of fronts is given.




 >> Lecture Outline <<




General Circulation

>> Global pattern of winds caused by uneven heating of the Earth's surface
>> Everything is connected

As mentioned before, the global pattern of winds is caused by the uneven heating of the earth's surface.  These winds work to move cooler air toward the equator and warmer air toward the poles.  All of the global wind patterns are connected to one another in some way.

Mid-latitudes: 30 to 60 Degrees Latitude

>> Polar Front: Boundary between warm, tropical air and cold, polar air

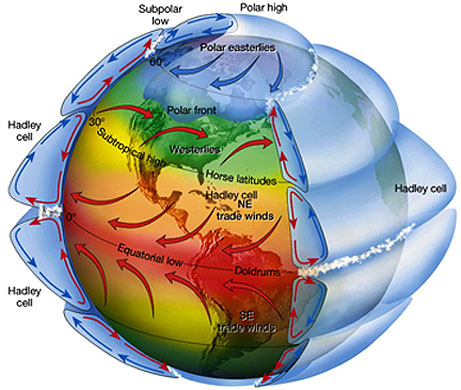

The polar front is a boundary between warm, tropical air and cold, polar air.  This front is strongest and farthest south during the winter months.  The polar front is labeled below in Figure 1.

Figure 1: The image above shows the position of the polar front as the boundary between warm, tropical air and cold, polar air.

>> Mid-latitude Jet Stream: A narrow channel of fast-moving, high-level winds that runs through the westerlies

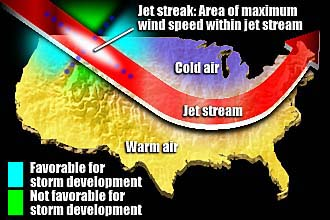

Figure 2: The jet stream separates warm air from the tropics from cold air from high latitudes.   It also has an impact on storm movement and development.



The mid-latitude jet stream is a narrow channel of fast-moving winds that runs through the westerlies.  This jet stream is a result of the large temperature contrast that occurs over a short horizontal distance.  The jet stream doesn't just move west to east, it also can form dips and bulges that are called troughs and ridges, respectively.

The mid-latitude jet stream plays a huge part in how the various weather systems move throughout this area of the world.  Not only does this stream of air steer the various weather systems, but it also can help to energize atmospheric features.  For example, cyclogenesis (formation of a low pressure system) usually occurs on the east side of an upper-level trough.  Anti-cyclogenesis (formation of a high pressure system), however, occurs on the east side of an upper-level ridge.  This is mainly due to the positioning of upper-level convergence and divergence, which work to increase or decrease the surface pressure respectively.  Figure 2, found to the right, illustrates the basic properties of the mid-latitude jet stream.



Air Masses

>> Large chunks of air several thousand miles wide and a few miles deep with relatively uniform temperature and moisture characteristics
>> Air masses are labeled based upon their temperature and moisture characteristics

Each air mass has its own two letter abbreviation that gives insight into its properties.  The first letter of the abbreviation (lowercase "m" or "c") outlines weather the air mass is a dry, continental air mass or a moist, maritime air mass.  The second letter in the abbreviation (capital "P", "T" or "A") gives an indication of the temperature of the air mass.  The various abbreviations can be seen below.  The origins of these air masses can also be seen in Figure 3.

Abbreviation

Official Name

Atmospheric Property

m Maritime Moist
c Continental Dry
P Polar Cold
T Tropical Warm
A Arctic Damn Cold

Table 1: The table above outlines the abbreviations used to identify various air masses.



Please download the Macromedia Flash Player in order to view this demonstration.

Figure 3: The map above illustrates the origin of each type of air mass that impacts the United States.

Fronts

>> The boundary between two different air masses
>> Relatively large temperature and/or moisture gradients
>> Relatively low surface pressure

Figure 4: The image above illustrates the basic structure of a front.  Notice the converging surface winds and rising air along the front.






Surface winds converge at the front and, therefore, the air rises, condenses and cools to form clouds and precipitation.  The basic structure of a front can be seen to the left in Figure 4.
